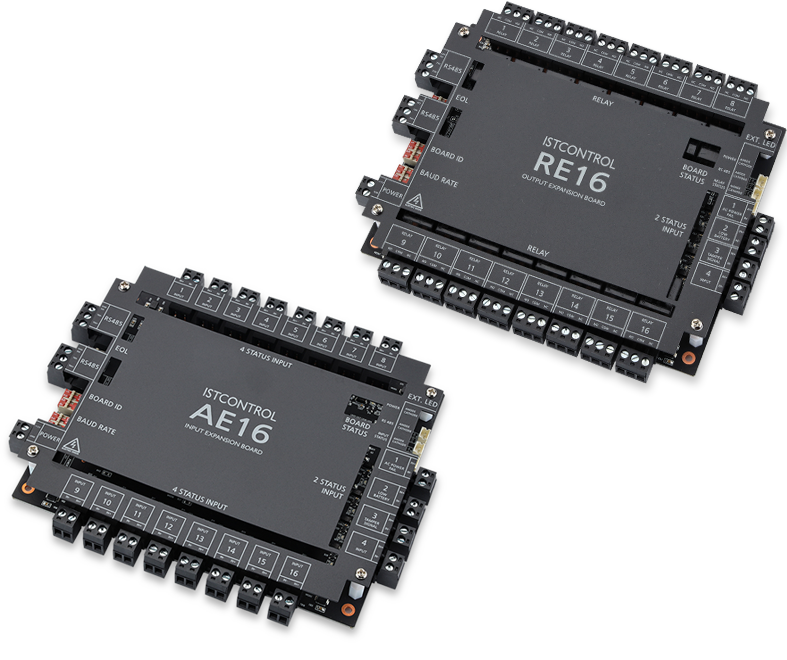

Input/Output Expansion Board_ AE16/ RE16

AE16 / RE16 is used with D2X, D4X, D8X controllers when the input port needs to be expanded, and communicates with the controller via RS485.

  • Door Lock
  • Alarm
  • Sensor
  • RS485
AE 16 Input Expansion Board
  • Provides 20 input ports

  • Supports 16-4 status inputs (open loop, shorted loop/grounded loop/line fault)

  • Supports 4 additional designated inputs (power fail, low battery, tamper, fire)

  • RS485 communication with controllers (D2X, D4X, D8X)

RE 16 Output Expansion Board
  • Provides 16 output ports

  • Supports 4 additional designated inputs (power fail, low battery, tamper, fire)

  • RS485 communication with controllers (D2X, D4X, D8X, E2X)

  • Floor button control through interlocking with E2X elevator controller

Proven reliability
  • Acquired domestic and international certifications (KC, CE, FCC)

  • Electrical noise protection circuit

  • Leading industrial site reference

Efficient installation and maintenance
  • Check operation status at a glance with 40 LEDs

  • Plate guide for main board protection and wiring guidance

  • Pluggable terminal block

  • Automatic recognition of standard Wiegand communication format

  • Smart wiring support

Key Feature



 AE16 Input Expansion Board

 RE16 Output Expansion Board

 RS485

 2(For redundancy)

 2(For redundancy)

 CPU

 32bit Cortex M3

 32bit Cortex M3

 Input ports

 20 ports (16 inputs of 4 status and 4 inputs of AC fail, Low battery, Tamper, Rev)

 4 ports (4 inputs of AC fail, Low battery, Tamper, Rev)

 Output

 3(Ext LED output)

 16(Form-C Relay), 3(Ext LED output)

 Dimension(mm*mm)

 170*135*25

 170*135*25

 Operating Temperature

 0~75

 0~75

 Relative humidity

 10~80%

 10~80%

 Power Consumption

 MAX 1A/12VMAX 1A/12V

 MAX 1A/12V

 Certification

 KC, FCC, CE

 KC, FCC, CE
