Biometrics
Iris recognition device

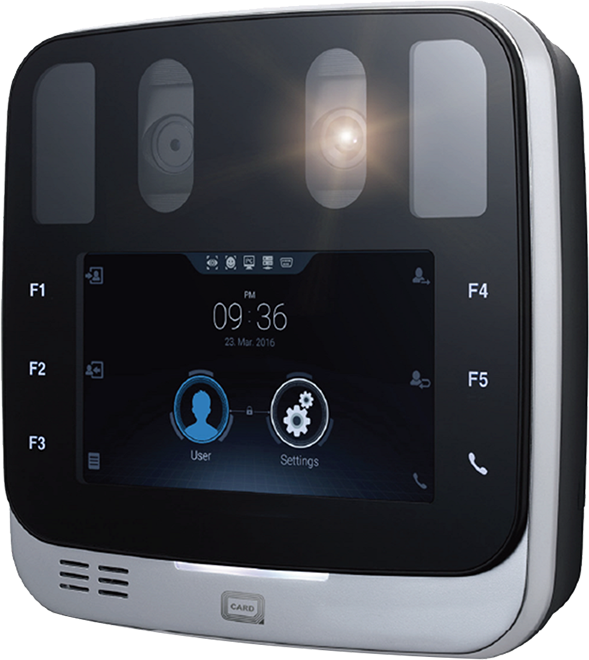

The EF-45N dual iris reader provides an intuitive user interface.
Why iris recognition?
-
Iris recognition is safe!
-
This is a safe security solution that recognizes the iris by using minimal infrared rays, which are harmless to the human body according to international standards.
-
Iris recognition is fast and accurate!
-
The irises of the right and left eyes of the same person and the irises of twins are all different. This is the only non-contact technology that can identify a single person out of all mankind with just one shot.
-
Face and iris recognition ensures personal hygiene.
-
Contactless biometrics can be used safely to block the spread of contaminants or viruses.
Long-distance iris recognition
-
Supports an iris recognition distance in the range of 30 ~ 45 cm (securing the best performance based on 38 cm support for the current market-leading product)
-
Natural iris/face recognition through intuitive user experience without additional practice
-
Applicable to various applications such as access control/time and attendance management/finance/healthcare/immigration management
Proven reliability
-
Acquired domestic and international certifications (KC, CE, FCC)
-
Electrical noise protection circuit
-
Leading industrial site reference
Easy and convenient intuitive user interface
-
The EF-45N's natural and intuitive method of authentication provides optimal user convenience.
-
The guide method for the actual face of the user provided on the LCD monitor can be easily used by anyone, without hesitation.
Key Feature
EF-45N iris recognizer |
|
Product size (W*H*D) |
166 * 166 * 43 mm |
Product weight |
630g |
Iris capture range |
Registration mode: 35~42 cm / Authentication mode: 32~45 cm |
Face capture range |
Registration mode: 50~65 cm / Authentication mode: 30~80 cm |
Touch Screen LCD |
5.0 inch TFT (854 x 480 pixels) |
User registration |
Iris: 10,000 people by default (1:1 or 1:N matching), option to support 50,000 people / Face: up to 1,000 people |
Operating temperature |
-20°C ~ 45°C |
Humidity range |
Up to 95% / non-condensing |
Audio |
24 bit, 1 W built-in speaker |
RF Card reader |
Mifare, Desfire, Felica |
Power specifications |
100 V~240 V AC/ Output 12 V~15 V DC (based on basic adapter) |
Certification Status |
Comply with ISO 19794-6, KISA certification, KC, CE, FCC, IEC 62471 (Eye Safety), RoHS standard certification |
