Controller

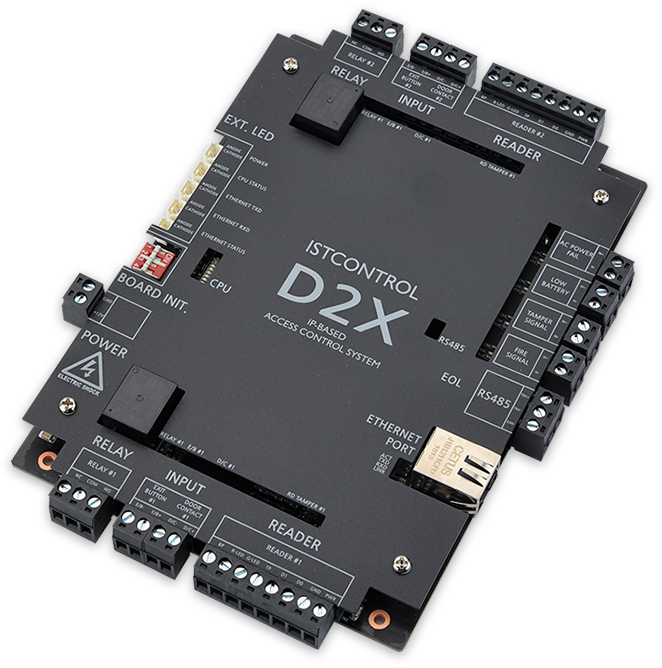

Two-door controller_ D2X
The D2X controller is a powerful network-based access controller that provides two reader ports and can control two doors.
-
Mobile Reader -
Proximity Card Reader -
Face Recognition Reader -
Iris Recognition Reader -
TCP/IP Communication -
Door Lock -
Alarm -
Sensor
Optimal speed, fast fast (super-fast speed), real-time
-
Multiple packet transmission/reception protocol
-
Fast and stable real TCP/IP communication
-
Board-to-board communication function
-
One-to-one module distributed communication
Powerful security functions
-
One-time-protocol, AES 256 encryption
-
Supports global anti-pass back
-
Supports two-man operation
-
Security level management for each area/visitor
-
Two-factor authentication function
Proven reliability
-
Acquired domestic and international certifications (KC, CE, FCC)
-
Electrical noise protection circuit
-
Leading industrial site reference
Efficient installation and maintenance
-
Check operation status at a glance with 40 LEDs
-
Plate guide for main board protection and wiring guidance
-
Pluggable terminal block
-
Automatic recognition of standard Wiegand communication format
-
Smart wiring support
Key Feature
D2X Two-Door Controller | |
Network | 100MB On board Ethernet TCP/IP |
RS485 | 1 |
CPU | 32bit ARM9 |
RAM | 64MB |
Flash Memory | 32MB |
Reader ports | 2(Include LED/BEEP Control port) |
Input ports | Eight inputs (four two-status inputs, four designated inputs (power fail, low battery tamper and fire alarm)) |
Output | 2(Form-C Relay), 5(Ext LED output) |
Cards | 100,000 |
Event | 50,000 |
Time schedule | 256 |
Holiday | 256 |
Dimension(mm*mm) | 180*130*25 |
Operating Temperature | 0~75 |
Relative humidity | 10~80% |
Power Consumption | MAX 1A/12V |
Certification | KC, FCC, CE |
Related Products

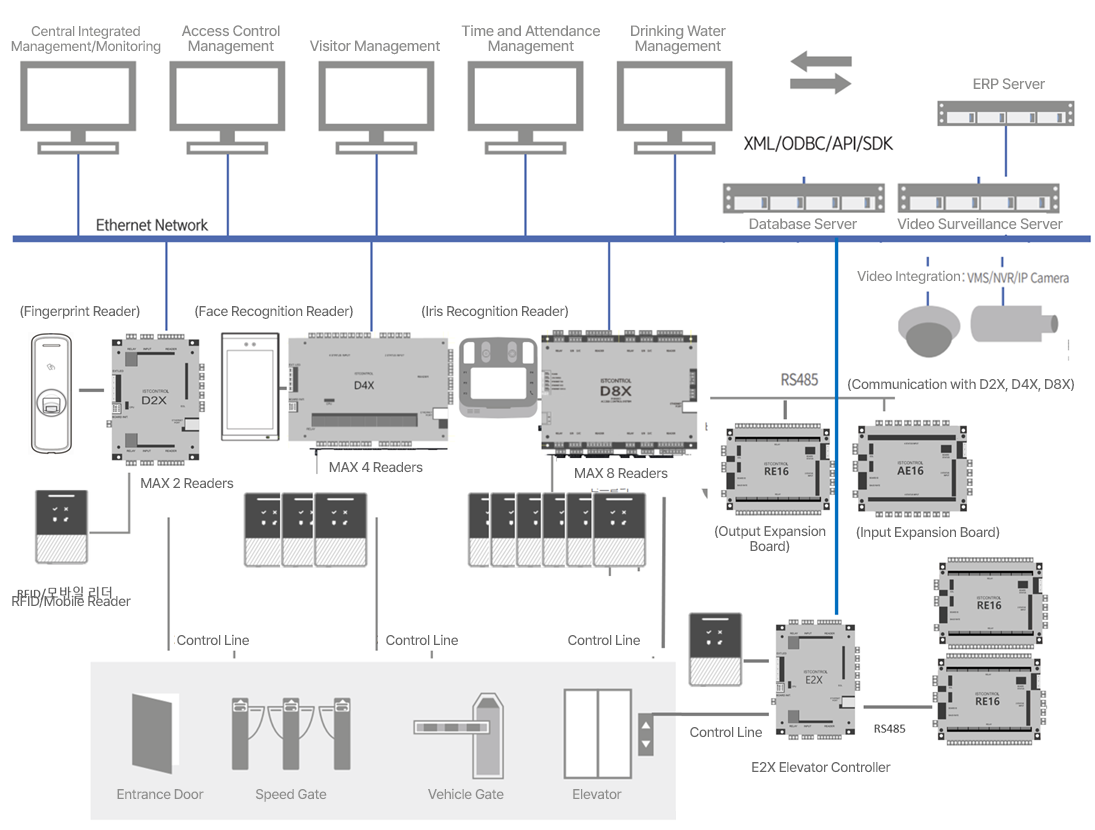

System Configuration Diagram
