HID Proximity Reader

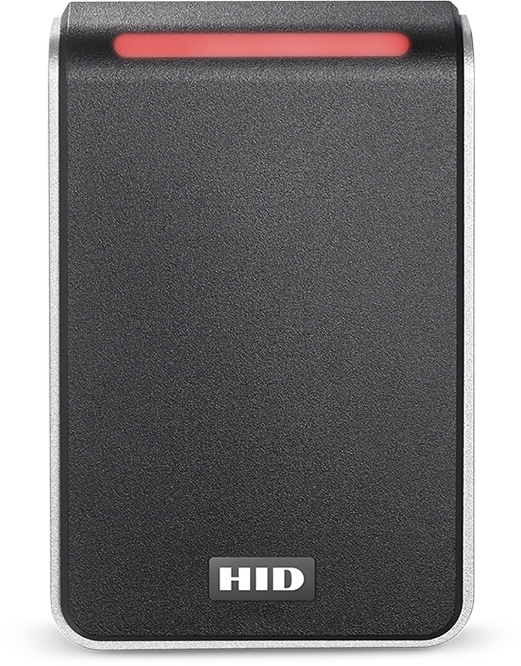

HID Signo Reader
HID Signo reader is HID Global's proximity card reader and supports BLE, 13.56 Mhz, 125 Khz.
Signature line of HID GLOBAL readers
-
High Utilization - Supports the broadest range of authentication technologies, including native Bluetooth and HID Mobile Access® over NFC (near field communication).
-
Best Performance - Securely stores encrypted keys in certified secure element hardware, and a new surface detection function automatically calibrates and optimizes read distance performance.
-
Ready for future - All readers immediately support Open Supervised Device Protocol (OSDP) for secure two-way communication as soon as they are unpacked.
Powerful security
-
Multi-layered security that verifies data reliability and protects privacy
-
AL5+ certified secure element hardware
-
Basic OSDP ssecure channel function
-
Reliable security authentication using the SIO data model
-
Supports iCLASS Elite™ and Corporate 1000
Wide range of uses
-
Native Bluetooth and NFC support for mobile use
-
Easy migration with integrated 125 kHz certified read support
-
Support for more than 15 common authentication technologies
-
Fixed terminal block in contact and pigtail wiring options
-
Solid outdoor performance with IP65 rating
Management, Upgrade and Configuration
-
Easy and secure management with HID Reader Manager®
-
Configuration via mobile device or OSDP
-
Firmware update to counter threats
-
Customization by audio visual or keypad settings configuration
-
End of security migration through disabling of traditional authentication techniques
Key Feature
|
20 |
40 |
40K |
2.4 GHz (Bluetooth) credential compatibility |
Mobile authentication using Seos® (HID mobile access) |
||
13.56 MHz (NFC) credential compatibility |
Mobile authentication using Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, Seos (HID mobile access) |
||
125 kHz credential compatibility |
HID Proximity®, Indala Proximity®, AWID Proximity, EM Proximity |
||
General reading range 1 |
Seos®, MIFARE Classic, MIFARE DESFire EV1/EV2, ISO14443A Single Technology Card – 1.6~4 inch (4~10 cm) HID / AWID Proximity®, Indala Proximity®, EM Proximity, 125 kHz Single Technology Card – 2.4~4 inch (6~10 cm) |
||
Size (Width x Height x Length) |
145mm x 121.5mm x 19.5mm |
80mm x 121.5mm x 19.5mm |
80mm x 121.5mm x 21.5mm |
Current consumption 3 |
3 NSC4: 60 mA Maximum: 250 mA Maximum average: 70 mA IPM5: 45 mA |
NSC4: 65 mA Maximum: 250 mA Maximum average: 75 mA IPM5: 45 mA |
NSC4: 70 mA Maximum: 250 mA Maximum average: 80 mA IPM5: 55 mA |
Operating voltage |
12V DC |
||
Operating temperature and humidity |
-35°C to +66°C, 0% to 95% non-condensing |
||
Environmental assessment |
UL294 outdoor and indoor rating, IP65 |
||
Transmission frequency |
125kHz, 13.56MHz, 2.4GHz |
||
Certification |
UL294/cUL (USA), FCC (USA), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS , MIC (Japan), GreenCircle, Bluetooth SIG |
||
